How to Setup My PetSafe® Happy Ride® Bicycle Basket


Welcome

Welcome to your new Happy Ride® Bicycle Basket!

Keep in Mind:

A harness will be needed to secure your pet in the bicycle basket.

Acclimation time is essential for your pet to successfully use the bicycle basket.

Designed for pets up to 13 pounds.


Preparation

Have the following contents available prior to set up:

diagramdiagram

Basket

diagramdiagram

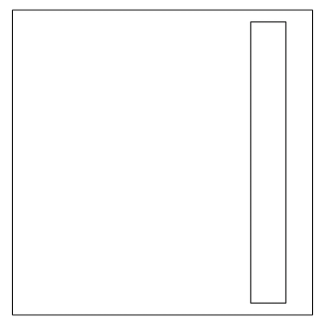

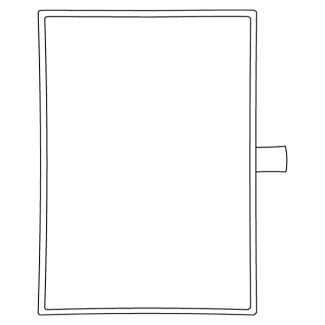

Side panel x2

diagramdiagram

Bottom panel

diagramdiagram

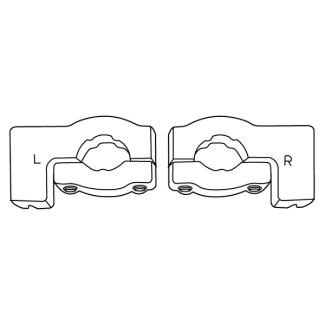

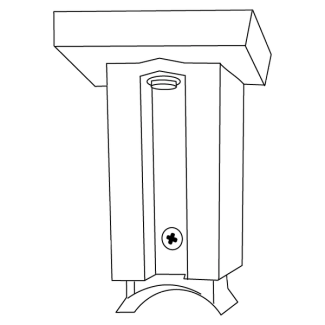

Left and right handlebar mounts

diagramdiagram

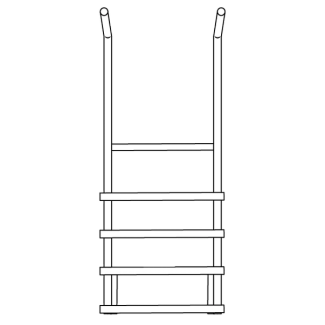

Wire bracket

diagramdiagram

Adjustable brace

diagramdiagram

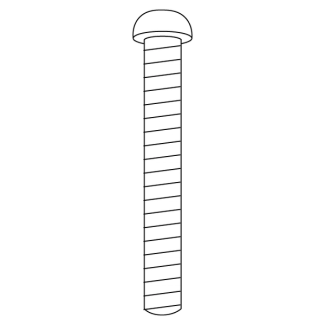

Long bolts x4

diagramdiagram

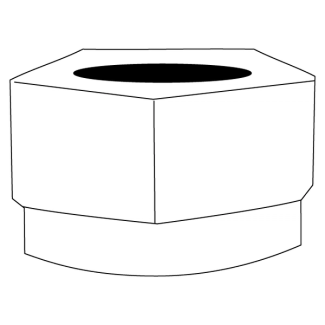

Nuts x4

diagramdiagram

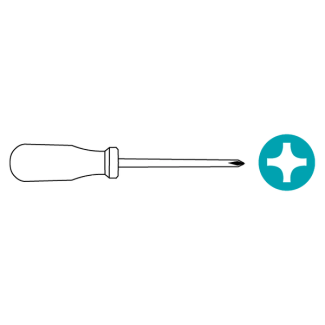

Phillips head screwdriver
(not included)

Optional:

diagramdiagram

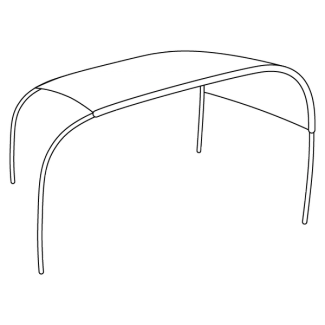

Sunshade

diagramdiagram

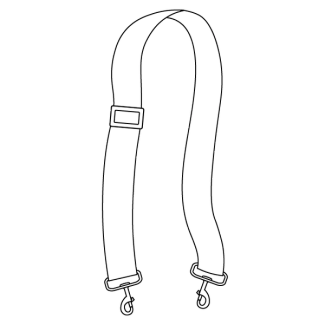

Shoulder strap


Step 1: Assembly

diagramdiagram

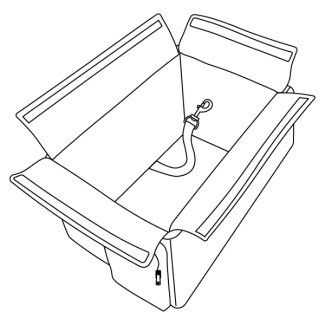

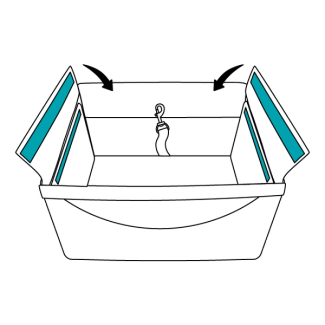

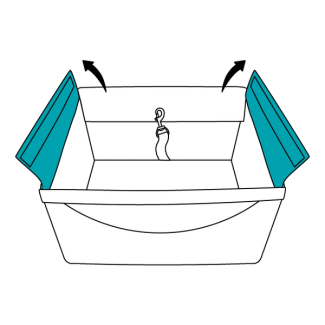

Lift up the top flaps on the sides of the basket.

diagramdiagram

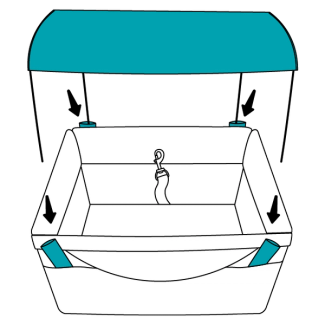

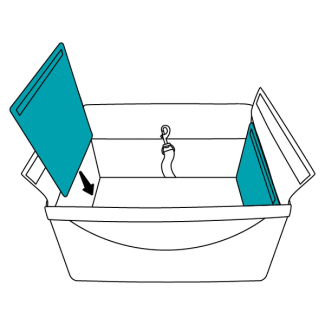

Insert the side panels. The hook and loop strips will be at the top and face inwards.

diagramdiagram

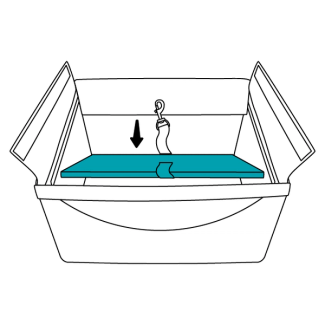

Insert the bottom panel under the attached safety tether ensuring it remains accessible.

diagramdiagram

Fold the top flaps down and press to secure the hook and loop strips.

diagramdiagram

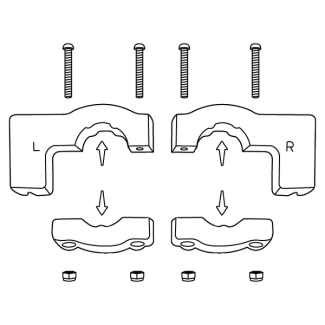

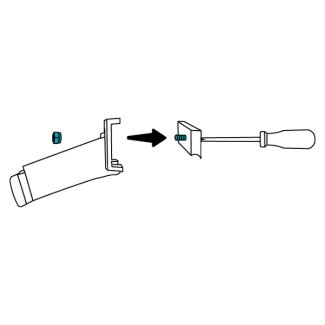

Unscrew and separate the handlebar mounts.

diagramdiagram

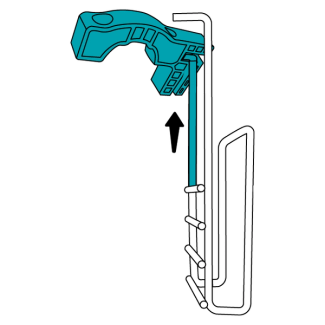

Insert the arm of the wire bracket into the groove on the back of the left upper handlebar mount.

diagramdiagram

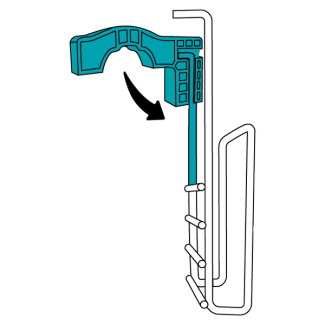

Rotate the upper mount until the arm of the wire bracket snaps firmly into the groove. A loud snap will be heard.

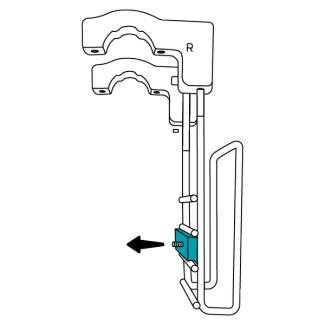

Repeat steps 6 and 7 with the upper right handlebar mount.

diagramdiagram

Unscrew the nut and bolt holding the front plate to the adjustable brace and remove the front plate.

diagramdiagram

Align the front plate with the front of the wire bracket.

diagramdiagram

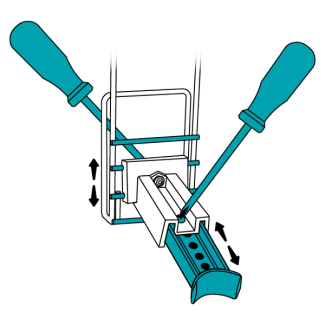

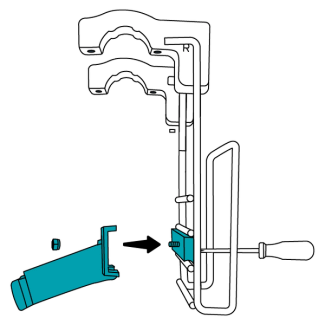

Place the brace behind the wire bracket and reconnect it to the front plate by tightening the nut and bolt until resistance is felt.


Step 2: Install on Bike

diagramdiagram

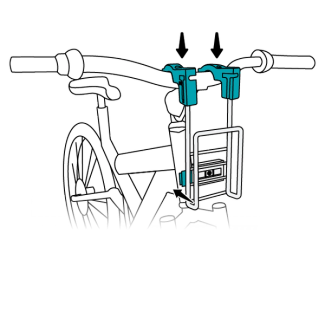

Hang the bracket assembly on the handlebars. Make sure that the curved back portion of the adjustable brace is sitting firmly against your bicycle’s frame.

diagramdiagram

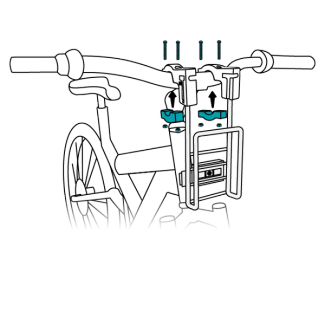

Align and reconnect the lower handlebar mounts to the upper handlebar mounts.

Important: Avoid pinching or bending your bike’s brake cables.

Note: Use the included long bolts if the short bolts do not fit your handlebars.

diagramdiagram

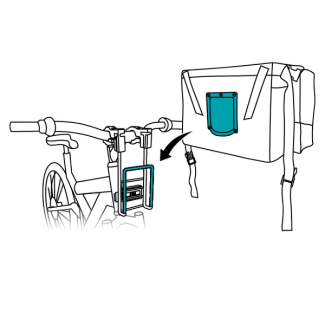

Slide the back pocket on the basket down onto the bracket assembly.

diagramdiagram

Check that the basket is level. Adjust the basket by extending the brace and moving it up or down on the bracket assembly until the basket is level.

Important: Once the basket is level, tighten all bolts and nuts until resistance is felt.

diagramdiagram

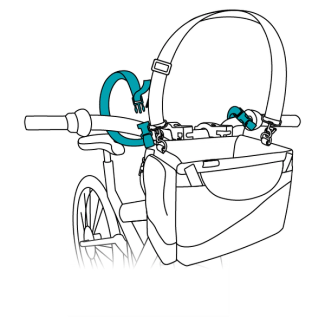

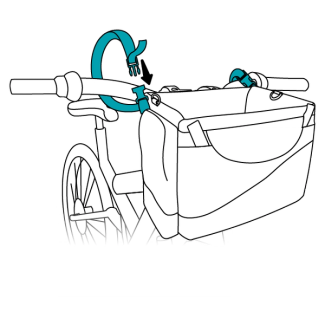

Fasten the safety straps to your handlebars.

diagramdiagram

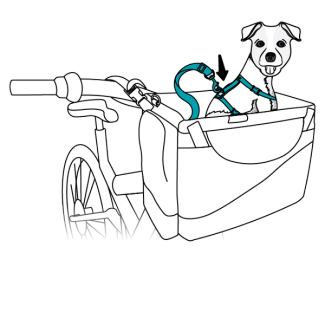

Place your pet in the basket and attach the safety tether to his harness. Adjust the tether so that your pet cannot jump out of the basket.

Important: Always make sure that the safety straps are snug before placing your pet in the basket.

Note: Some pets may need help adjusting to riding in the basket.

Step 3: Optional Features

Sunshade

diagramdiagram

Insert the support rods into the pockets on the basket. The short ends fit into the front of the basket.

Shoulder Strap

diagramdiagram

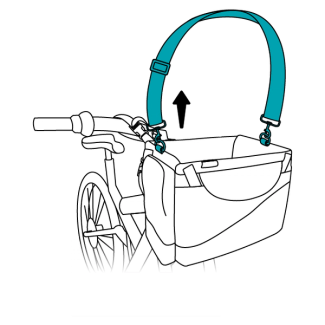

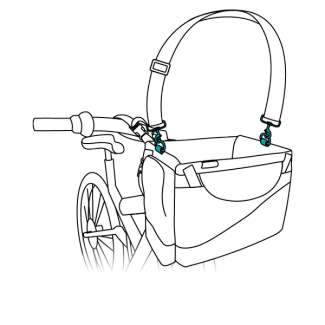

Attach the strap to the loops on each side of the basket.

diagramdiagram

Release the safety straps from the handlebars.

diagramdiagram

Lift the basket upwards to remove it from the mount.


Contact Customer Care

If you need further assistance, please contact our customer care team.
