How to Clean Your Drinkwell® Sedona Fountain

The fountain should be cleaned at least once a month to avoid mineral buildup and to ensure clean drinking water. It is recommended to clean the pump and change the filter when cleaning the fountain.

Note: Multi-pet households may need to clean every two weeks.

Disassemble the Fountain

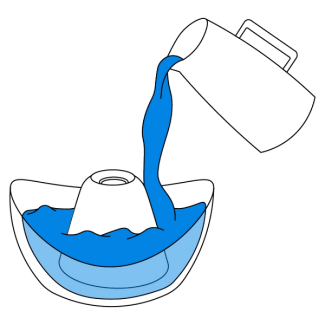

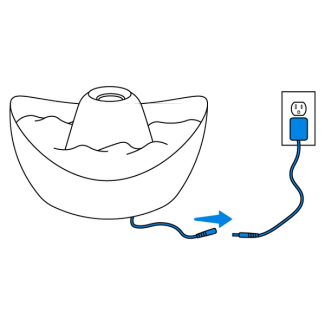

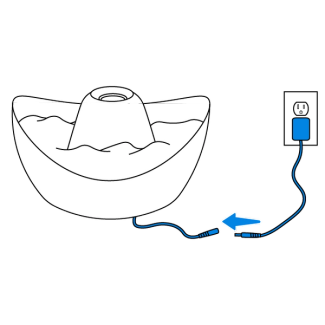

Unplug the pump from the wall adaptor and empty the fountain.

Remove the tower from the bowl.

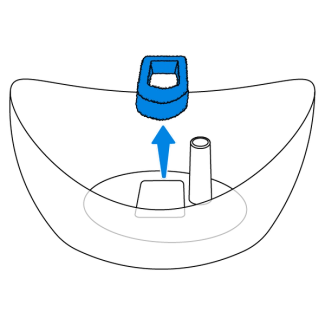

Remove the filter housing from the pump.

Remove the carbon filter from the filter housing and discard.

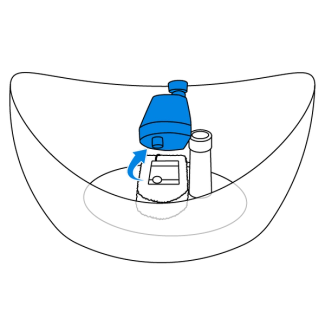

Peel off the rubber cap from the stem.

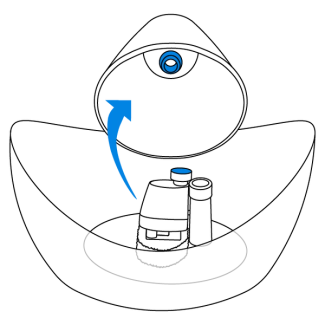

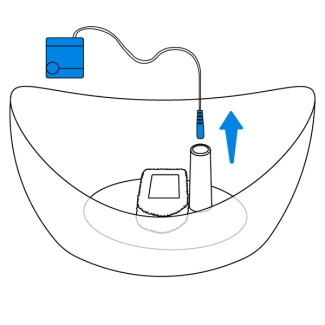

Pull the pump cord out through the stem and remove the pump. Set the pump aside.

Remove the foam filter.

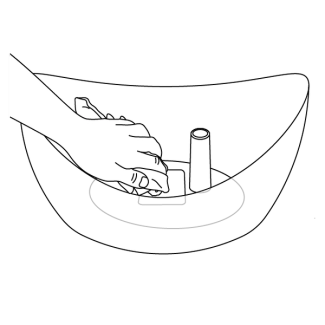

Clean the fountain and removed parts, excluding the pump, with soap and warm water.

The bowl and tower are dishwasher safe on top rack only.

Note: If there is leftover residue, soak the fountain in white vinegar and warm water for 30 minutes. Wash again with soap and warm water before use.

Disassemble the Pump

Note: Place the pump parts in a safe place to avoid dropping them down the drain.

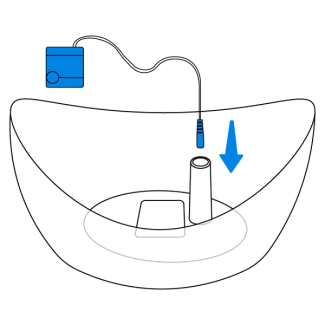

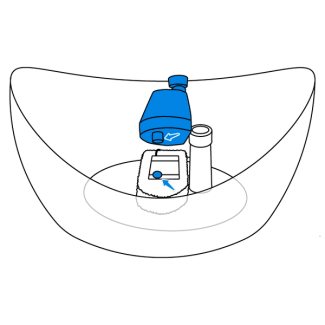

Use a tool with a small, flat edge to remove the faceplate on the end opposite to the cord.

Pull up on the small lip to remove the teardrop shaped stator.

Remove the impeller by pulling up from underneath the white disk.

Note: The impeller is held in place by a magnet. This may give some resistance when trying to remove.

Clean all parts of the pump using soap and warm water with a small brush. Completely rinse the pump, then reassemble.

If hard water build up occurs, soak pump in equal parts vinegar and warm water for 15 minutes, then scrub.

Reassemble the Pump

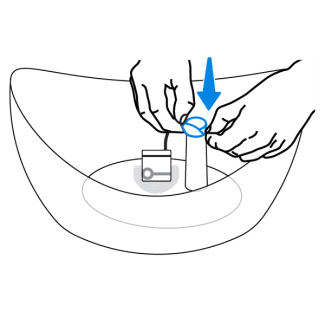

Place the impeller, stator and faceplate back onto the base to reassemble the pump.

Rinse the Filters

Note: The carbon is made from coconut shells and is safe for your pet.

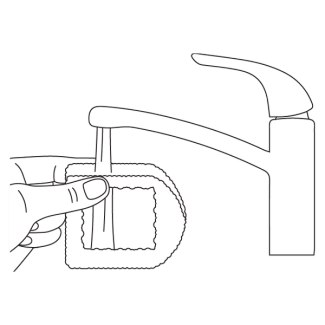

Rinse the new carbon filter under warm water for 30 seconds before use. Loose black particles will rinse out from the filter and can be seen in the bowl if the filter is not rinsed thoroughly.

Rinse the foam filter under warm water for 30 seconds before use. This filter will remove hair and other small particles. Replace if damage is noticed.

Reassemble the Fountain

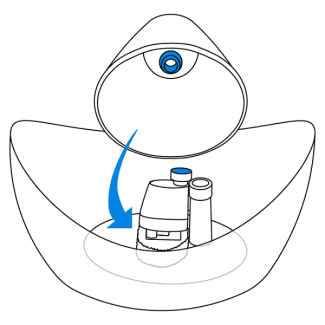

Thread the pump cord through the stem on the bowl.

Place the pump in the foam filter.

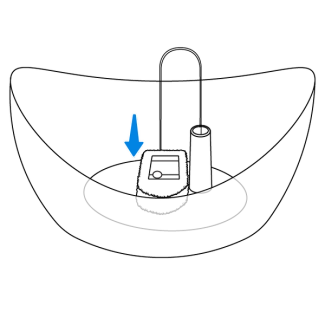

Place the foam filter and pump on top of the square in the bowl of the fountain. Press down to adhere the suction cups on the pump to the bowl. Pull the pump cord snug from the bottom of the bowl.
