How to Disassemble and Reassemble My PetSafe® Drinkwell® Platinum Fountain
Important Information
Clean the fountain at least once a month to avoid mineral buildup. Multi-pet households may need to clean more frequently.
It is recommended to clean the pump and change the filters when cleaning the fountain.
For detailed information, visit our article on How to Clean My Drinkwell® Platinum Pet Fountain.
Disassemble
Unplug the power adapter from the outlet. Disconnect the pump from the power adapter.
Remove the lid and reservoir.
Empty the fountain by pouring out any remaining water.
Slide the pre-filter up to remove from the bowl.
Press on both sides of the filter housing to release and lift to remove from the bowl.
Remove the filter from the filter housing.
Remove the pump from the bowl. Lift gently on the pump to allow suction cup feet to release. Pull the pump cord through the opening.
The pump should be disassembled for cleaning. For more information, visit our article How to Take Apart My Drinkwell® Fountain Pump for Cleaning.
Reassemble

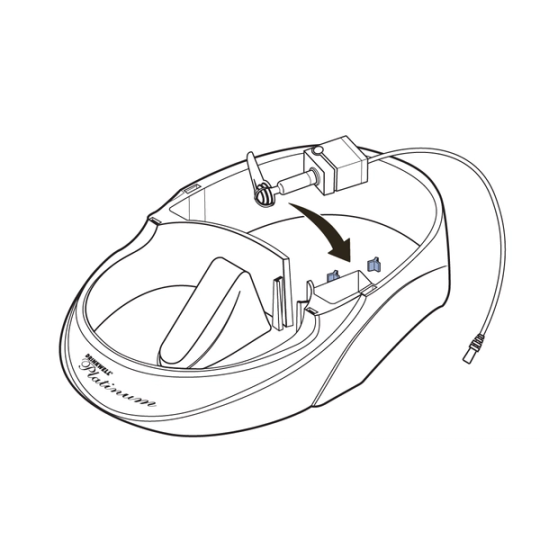

Align the pump with the guides in the bowl and place the pump in the fountain. Press down on the pump to adhere the suction cup feet to the fountain bowl.

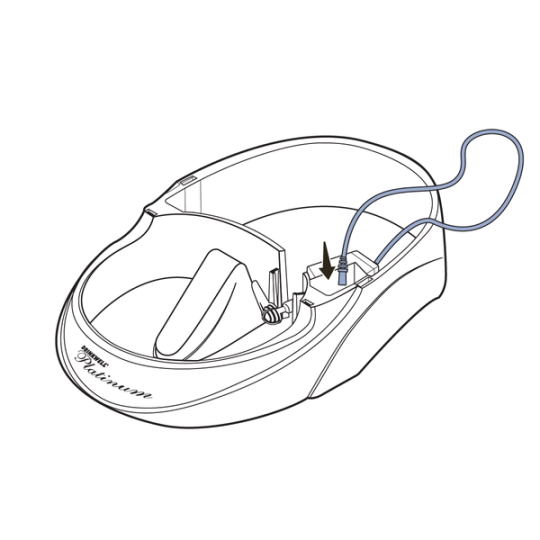

Run the pump cord through the opening and under the fountain. Pull excess cord, leaving some slack from the pump to the hole.

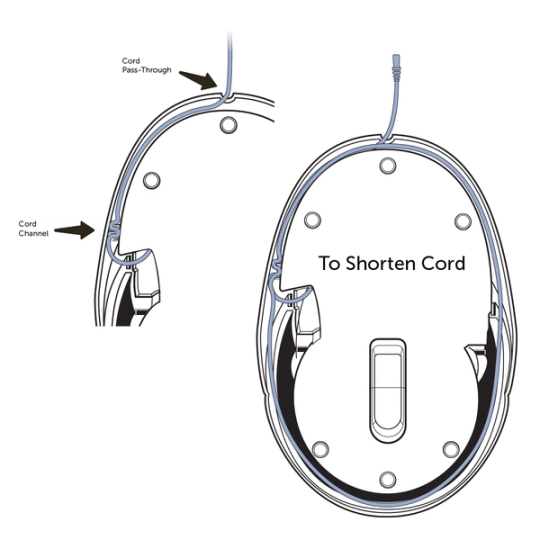

Tuck the cord into the cord channels on the underside of the bowl. Thread the cord along the back of the fountain to the cord notch.
If you need to shorten the cord, wrap the cord inside around the bowl and through the cord channel a second time, then out through the cord pass-through.

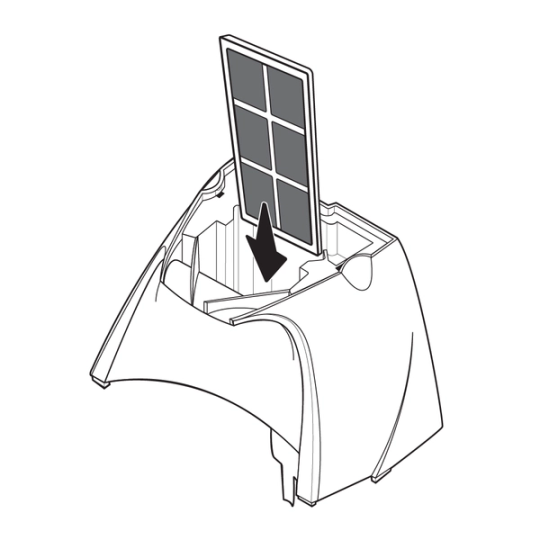

Rinse the carbon filter under warm water for 30 seconds, then insert it into the filter housing with the narrow side down and the black side facing the front.

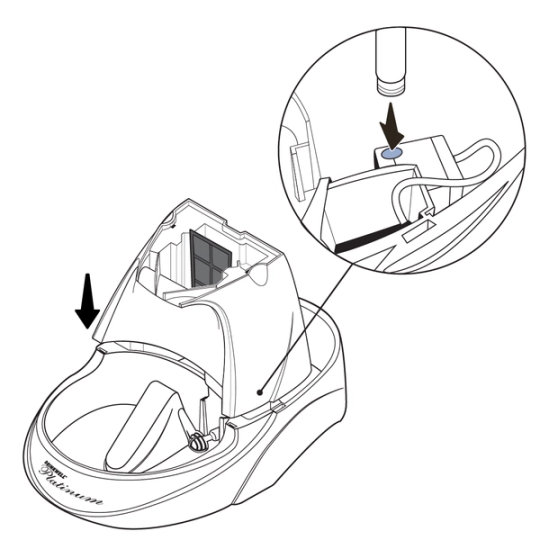

Align the filter housing with the bowl, ensuring the intake tube is directly over the pump opening. Press down gently to lock the filter housing into place.

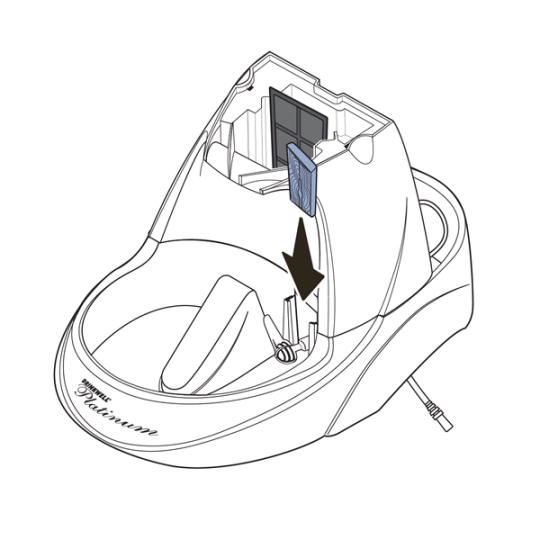

Slide the pre-filter into the channel over the flow control knob on the pump.

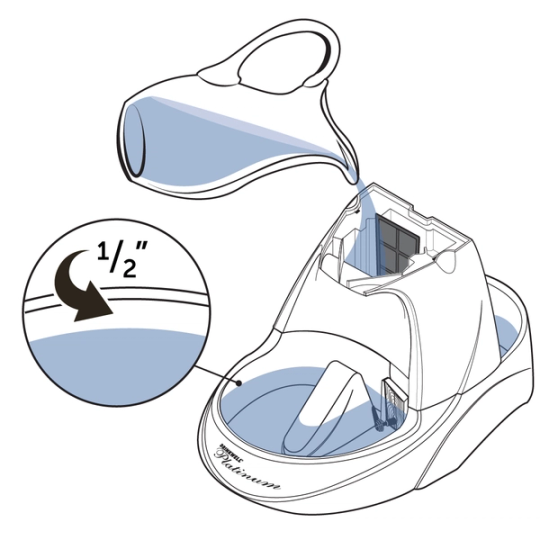

Place the fountain in your desired location. Pour water into the filter housing and bowl until the water level is about ½ inch from the bowl rim. Then replace the lid on the filter housing.
Unscrew the cap on the water reservoir and fill with water.
Replace and tighten the cap on the reservoir. Flip the reservoir so that the cap is facing down.
Place the water reservoir into the bowl and allow the bowl to finish filling from the reservoir.
Connect the pump cord to the power adapter. Plug the power adapter into an outlet.

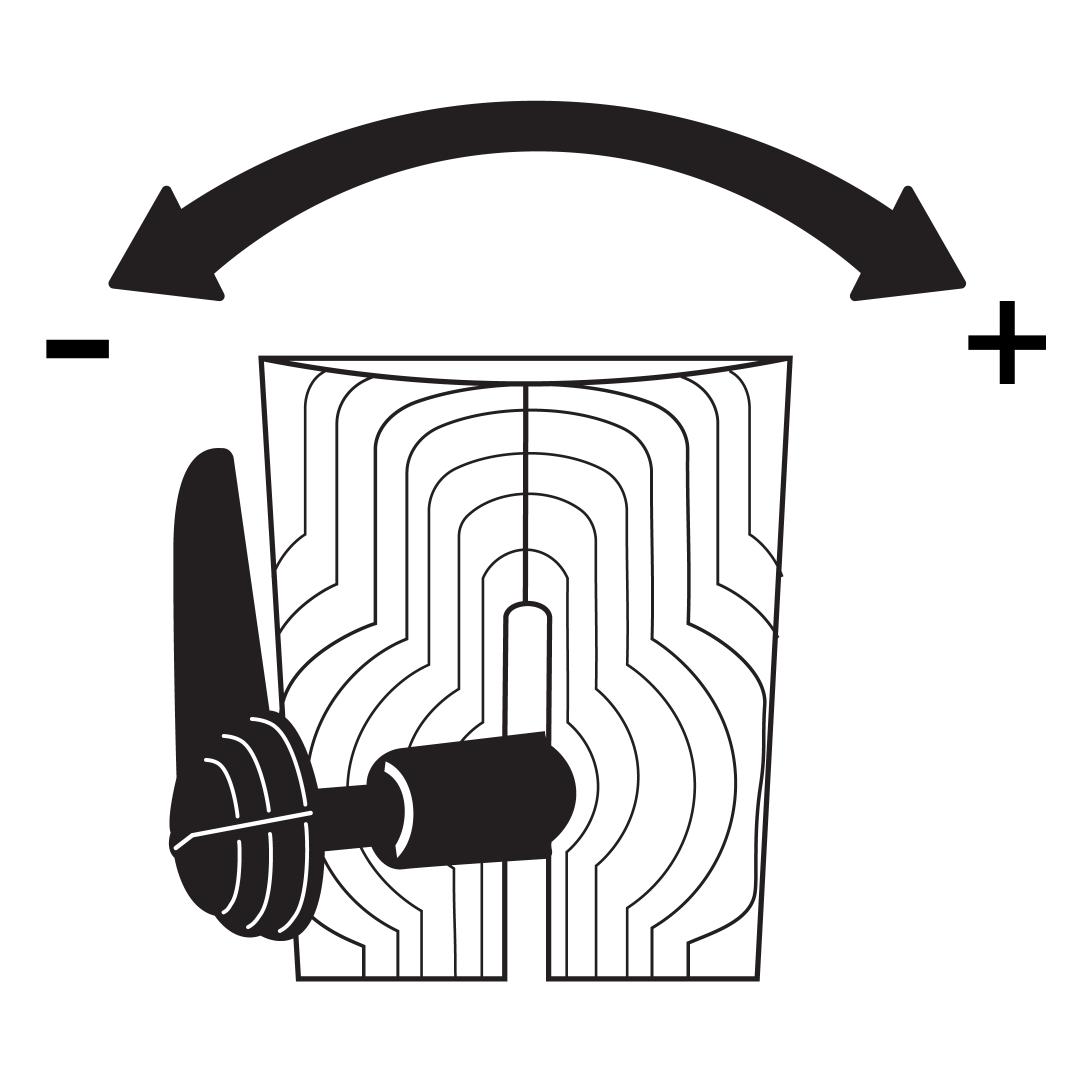

Adjust the flow knob to increase or decrease the flow of water to your preference.
